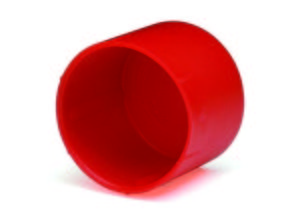

Caps female quick fit style plain push-in

TECHNICAL DATA
DOWNLOAD


Filetto Gas

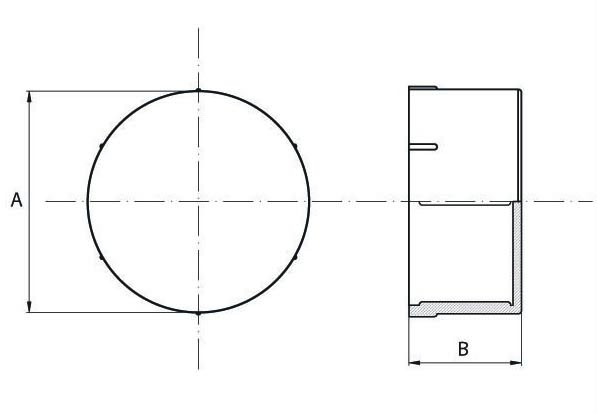

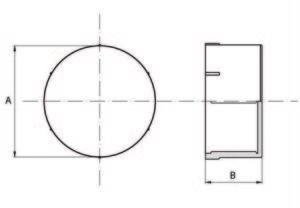

Sizes ( mm )

Code

A B
TFG1/4QT 15 11
TFG1-1/4QT 45 23.5
TFG3/8QT 19 11
TFG3/4QT 29.5 21.5
TFG1-1/2QT 51.2 28.9
TFG1QT 35.5 20.5
TFG1/4QTNV 15 11


Filetto Metric

Sizes ( mm )

Code

A B
TFM26X1.5QT 29.5 21.5
TFM30X02QT 33 16.5
TFM30X1.5QT 33 16.5
TFM42X02QT 45 23.5
TFM14X1.5QT 16.5 15
TFM22X1.5QT 25 20.5
TFM36X02QT 38 18.5


Filetto Unf

Sizes ( mm )

Code

A B
TFU1-5/16QT 35.5 20.5
TFU1/2QT 15 14
TFU9/16QT 16.5 15
TFU1-1/16QT 29.5 21.5
TFU7/8QT 25 20.5
TFU3/4QT 22 17


Filetto Metric

Sizes ( mm )

Code

A B
TFM42X02QTBL 45 23.5


Filetto Unf

Sizes ( mm )

Code

A B
TFU3/4QTBL 22 17
