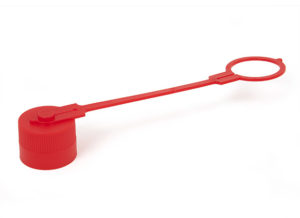

Female screw coupling caps

TECHNICAL DATA
DOWNLOAD


Filetto Gas

Sizes ( mm )

Code

A B C D
IVF1/4-120-024 24.1 24 120 18
IVF3/8-120-024 29 24 120 16


Filetto Metric

Sizes ( mm )

Code

A B C D
IVF24-120-019.5 24 19.5 120 2
IVF28-180-022.5 28 22.5 180 2
IVF42-160-034.5 42 34.5 160 2
IVF70-240-053 70 53 240 3
IVF48-160-042.5 48 42.5 160 3
IVF28-120-024 28 24 120 2
IVF36-135-029.5 36 29.5 135 2
IVF42-180-037.5 42 37.5 180 2
IVF70-240-063 70 63 240 3
IVF48-240-053 48 53 240 3
IVF48-180-037.5 48 37.5 180 3
IVF36-180-030 36 30 180 2
IVF24-120-024 24 24 120 2
IVF48-190-041 48 41 190 3
IVF70-240-055 70 55 240 3
IVF36-135-027.5 36.5 27.5 135 2


Filetto Gas

Sizes ( mm )

Code

A B C D
IVF3/8-120-024NE 29 24 120 16
IVF1/4-120-024NE 24.1 24 120 18
IVF3/8-135-029NE 35.5 29 135 16


Filetto Metric

Sizes ( mm )

Code

A B C D
IVF36-180-030GI 36 30 180 2
