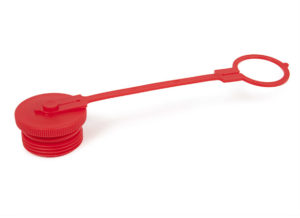

Male screw coupling plugs

TECHNICAL DATA
DOWNLOAD


Filetto Gas

Sizes ( mm )

Code

A B C D
IVM3/8-120-024 29 24 120 16
IVM1/4-120-024 24.5 24 120 18


Filetto Metric

Sizes ( mm )

Code

A B C D
IVM24-120-019.5 24 19.5 120 2
IVM28-120-024 28 24 120 2
IVM36-135-029.5 36 29.5 135 2
IVM36-180-030 36 30 180 2
IVM42-180-037.5 42 37.5 180 2
IVM24-120-024 24 24 120 2
IVM48-240-053 48 53 240 3
IVM70-240-053 70 53 240 3
IVM48-180-037.5 48 37.5 180 3
IVM28-180-022.5 28 22.5 180 2
IVM48-160-042.5 48 42.5 160 3
IVM42-160-034.5 42 34.5 160 2
IVM70-240-063 70 63 240 3
IVM48-190-041 48 41 190 3
IVM70-240-055 70 55 240 3
IVM36-135-027.5 36.5 27.5 135 2


Filetto Gas

Sizes ( mm )

Code

A B C D
IVM1/4-120-024NE 24.5 24 120 18
IVM3/8-120-024NE 29 24 120 16


Filetto Metric

Sizes ( mm )

Code

A B C D
IVM36-135-027.5GI 36.5 27.5 135 2

Download the PDF of this product and
discover all the features
