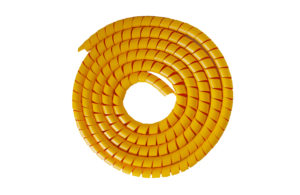

Spirals

TECHNICAL DATA
DOWNLOAD


Filetto Ref.

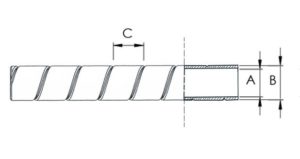

Sizes ( mm )

Code

A B C
SD-009NE 7 9 6.5
SD-012NE 9.5 12.5 10
SD-016NE 12.5 16 12
SD-020NE 16 20 14.5
SD-025NE 21 25 21
SD-032NE 27 32 24
SD-040NE 34 40 30
SD-050NE 44 50 35
SD-063NE 55 63 40
SD-075NE 66 75 40
SD-090NE 79 90 45
SD-110NE 99 110 55
SD-125NE 114 125 55
SD-140NE 129 140 55
SD-160NE 148 160 60


Filetto Ref.

Sizes ( mm )

Code

A B C
SD-009GI 7 9 6.5
SD-012GI 9.5 12.5 10
SD-016GI 12.5 16 12
SD-020GI 16 20 14.5
SD-025GI 21 25 21
SD-032GI 27 32 24
SD-040GI 34 40 30
SD-050GI 44 50 35
SD-063GI 55 63 40
SD-075GI 66 75 40
SD-090GI 79 90 45
SD-110GI 99 110 55
SD-125GI 114 125 55
SD-140GI 129 140 55
SD-160GI 148 160 60

Download the PDF of this product and
discover all the features
