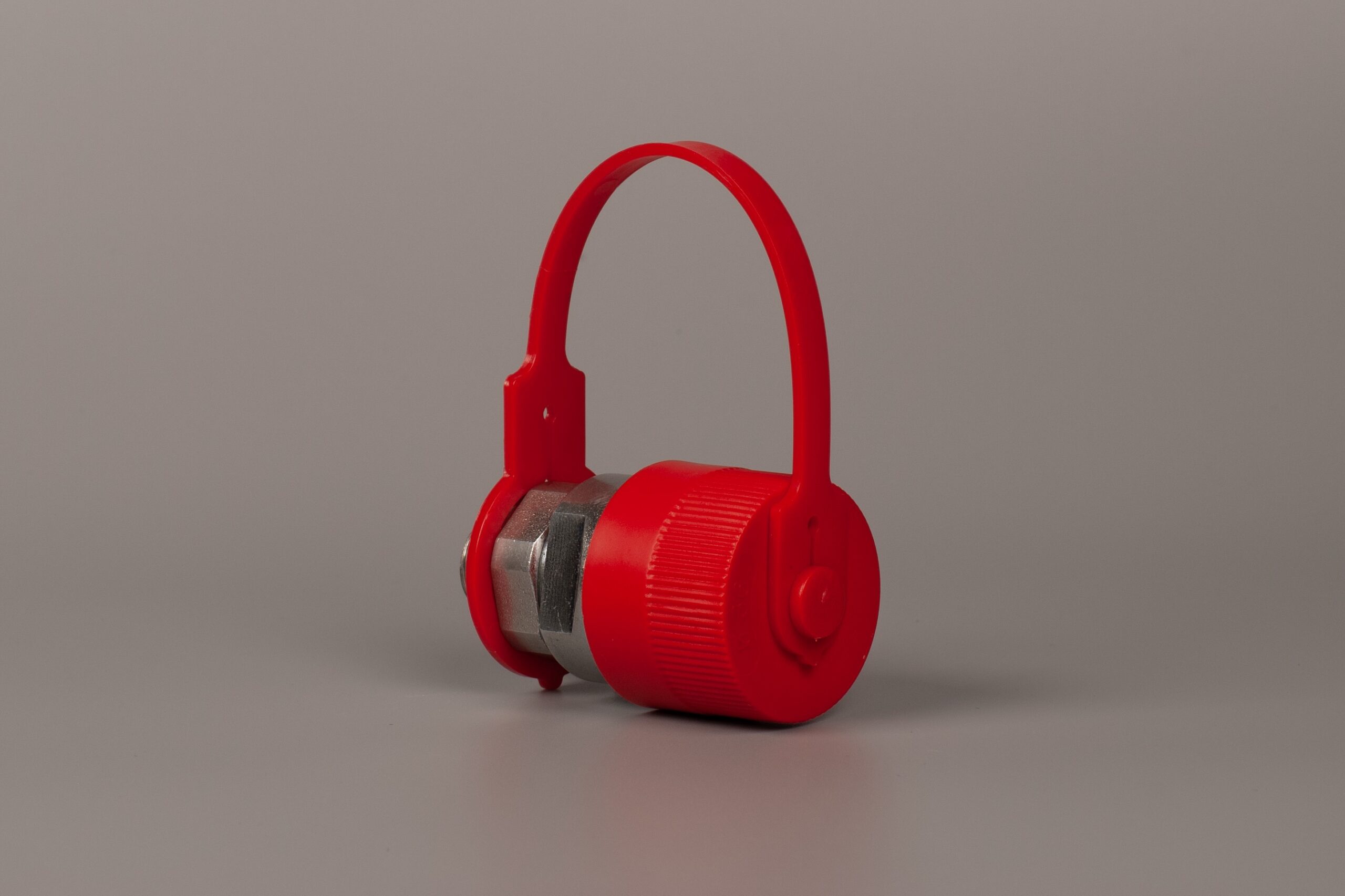

Tappi femmina per innesto a vite

ECO Female screw coupling caps

Tappi femmina per innesto a vite

TECHNICAL DATA
DOWNLOAD


Filetto Gas

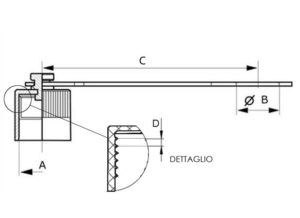

Sizes ( mm )

Code

A B C D
IVF1/4-120-024ECO 24.1 24 120 18


Filetto Metric

Sizes ( mm )

Code

A B C D
IVF24-120-019.5ECO 24 19.5 120 2
IVF24-120-024ECO 24 24 120 2
IVF28-120-024ECO 28 24 120 2
IVF28-180-022.5ECO 28 22.5 180 2
IVF36-135-027.5ECO 36.5 27.5 135 2
IVF36-135-029.5ECO 36 29.5 135 2
IVF36-180-030ECO 36 30 180 2
IVF42-160-034.5ECO 42 34.5 160 2
IVF42-180-037.5ECO 42 37.5 180 2
IVF48-160-042.5ECO 48 42.5 160 3
IVF48-180-037.5ECO 48 37.5 180 3
IVF48-190-041ECO 48 41 190 3
IVF48-240-053ECO 48 53 240 3
IVF70-240-053ECO 70 53 240 3
IVF70-240-055ECO 70 55 240 3
IVF70-240-063ECO 70 63 240 3

Download the PDF of this product and
discover all the features
