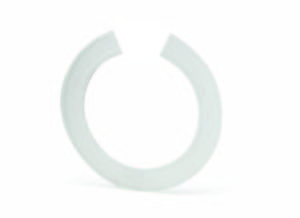

ECO Open ring thickness 0.5
TECHNICAL DATA
DOWNLOAD
IT:FILETTO REF.EN:REF. THREADFR:Filet Ref.DE:Gewinde Ref.ES:Rosca Ref.CZ:Závit Ref.PL:Gwint Ref.
| Codice | A | B | C | |
|---|---|---|---|---|
| AA 005 080 130 ECO | DN06 | 8.0 | 13.0 | 0.5 |
| AA 005 090 145 ECO | DN08 | 9.0 | 14.5 | 0.5 |
| AA 005 110 170 ECO | DN10 | 11.0 | 17.0 | 0.5 |
| AA 005 145 205 ECO | DN13 | 14.5 | 20.5 | 0.5 |
| AA 005 175 245 ECO | DN16 | 17.5 | 24.5 | 0.5 |
| AA 005 342 380 ECO | DN32 | 34.2 | 38.0 | 0.5 |
