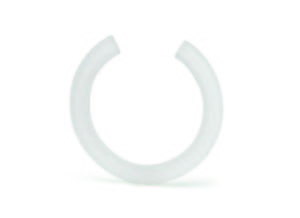

ECO Open thickness 2
TECHNICAL DATA
DOWNLOAD
IT:FILETTO REF.EN:REF. THREADFR:Filet Ref.DE:Gewinde Ref.ES:Rosca Ref.CZ:Závit Ref.PL:Gwint Ref.

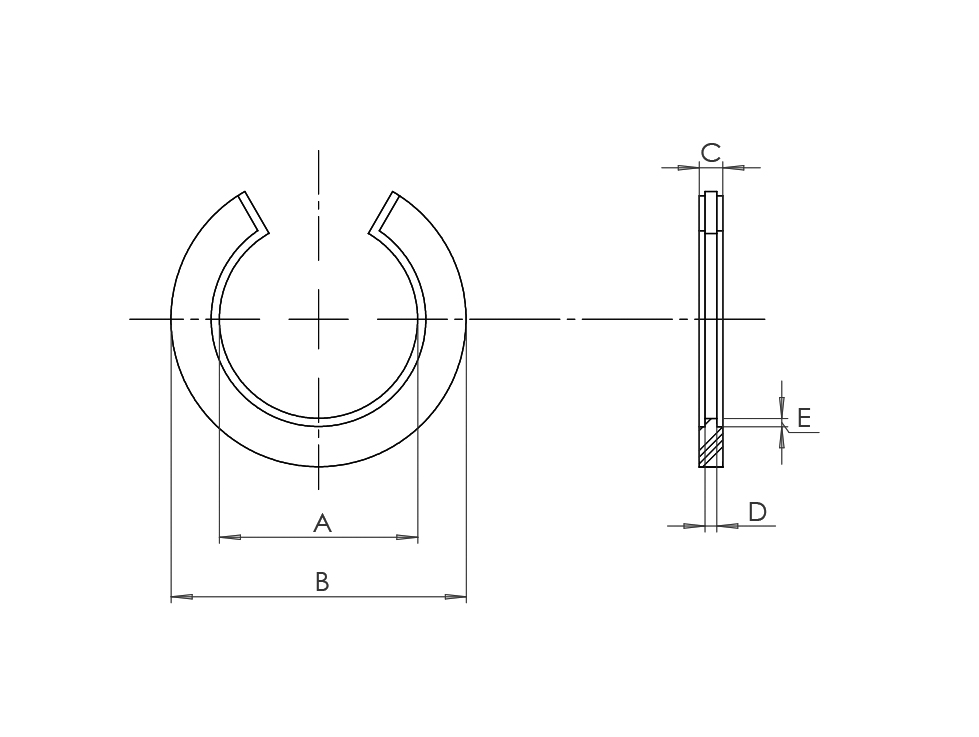

| Codice | A | B | C | D | E |
|---|---|---|---|---|---|
| AAMO035AP ECO | 6.7 | 13.0 | 2.0 | 1.0 | 0.7 |
| AAMO099AP ECO | 7.9 | 14.0 | 2.0 | 1.0 | 0.7 |
| AAMO036AP ECO | 10.8 | 17.0 | 2.0 | 1.0 | 0.7 |
| AAMO098AP ECO | 10.8 | 17.0 | 2.0 | 1.0 | 0.7 |
| AAMO070AP ECO | 11.4 | 16.7 | 2.0 | 1.0 | 0.7 |
| AAMO095AP ECO | 14.0 | 20.0 | 2.0 | 1.0 | 0.7 |
| AAMO039AP ECO | 19.0 | 25.5 | 2.0 | 1.0 | 0.7 |
| AAMO071AP ECO | 20.8 | 28.5 | 2.0 | 1.0 | 0.7 |
| AAMO041AP ECO | 25.8 | 34.0 | 2.0 | 1.0 | 0.7 |
| AAMO072AP ECO | 26.4 | 35.0 | 2.0 | 1.0 | 0.7 |
| AAMO042AP ECO | 34.6 | 41.2 | 2.0 | 1.0 | 0.7 |
| AAMO068AP ECO | 40.5 | 49.0 | 2.0 | 1.0 | 0.7 |
| AAMO040AP ECO | 41.5 | 46.5 | 2.0 | 1.0 | 0.7 |
| AAMO044AP ECO | 48.0 | 58.0 | 2.0 | 1.0 | 0.7 |
