Tappi cilindrici

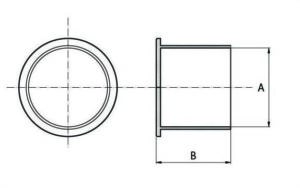

DATI TECNICI
DOWNLOAD

IT:FILETTO GASEN:GAS THREADFR:Filetage pour gazDE:Gas-GewindeES:Rosca GasCZ:Plynové vláknoPL:Gwint gazowy

Codice A B
NPT 1/8 9.8 14.8
NPT 1/4 13.0 14.8
TCN 3/8 D NPT 16.0 11.5
NPT 3/8 16.3 11.5
NPT 1/2 20.8 20.0
NPT 3/4 26.0 19.5
NPT 1-1/2 47.0 26.5

IT:FILETTO METRICAEN:METRIC THREADFR:Filetage métriqueDE:Metrisches GewindeES:Rosca métricaCZ:Metrický závitPL:Gwint metryczny

Codice A B
TCN 05 5.0 13.8
TCN 07 6.8 10.0
TCN 17 17.2 13.7
TCN 18L 17.8 23.2
TCN 22 21.5 17.7
TCN 38 37.5 21.0
TCN 44.5 44.5 14.2
TCN 73 73.5 30.0

IT:FILETTO UNFEN:UNF THREADFR:Filet UnfDE:Unf-GewindeES:Rosca UnfCZ:Závit UnfPL:Gwint Unf

Codice A B
TCN 7/16 11.0 15.3
TCN 1/2 12.3 14.8
TCN 9/16 14.0 15.0
TCN 11/16 17.0 13.6
TCN 3/4 18.5 19.0
TCN 13/16 20.3 16.6
TCN 7/8 21.8 17.5
TCN 1 25.0 17.5
TCN 1-1/16 26.5 19.5
TCN 1-3/16 30.0 19.7
TCN 1-5/16 32.5 19.5
TCN 1-7/16 36.0 19.5
TCN 1-5/8 41.0 23.0
TCN 1-5/8L 41.0 35.5
TCN 1-11/16 42.0 20.0
TCN 1-7/8 47.0 26.5
TCN 2 50.5 27.0
