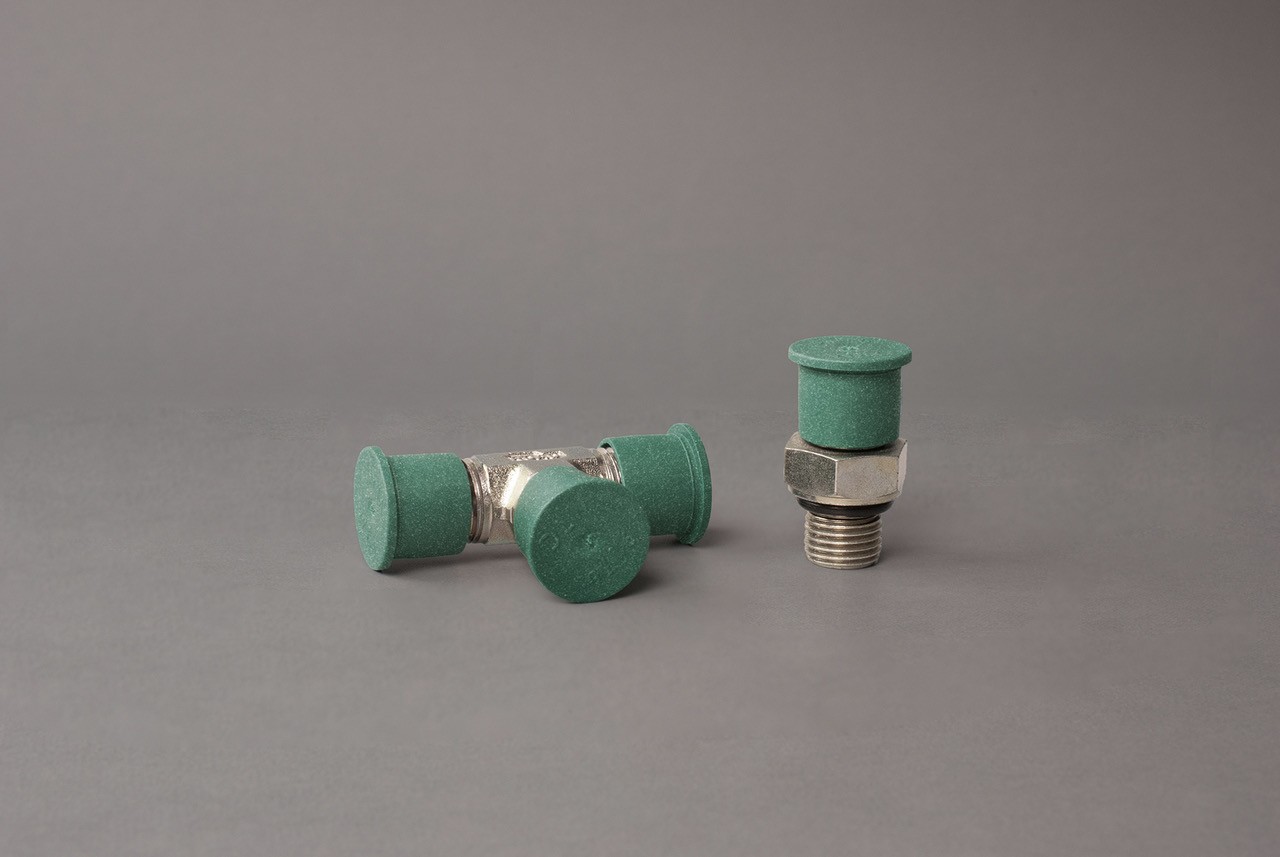

Geflanschte Kappen
IT:FILETTO GASEN:GAS THREADFR:Filetage pour gazDE:Gas-GewindeES:Rosca GasCZ:Plynové vláknoPL:Gwint gazowy
| Codice | A | B |
|---|---|---|
| NPT 1/8 | 9.8 | 14.8 |
| NPT 1/4 | 13.0 | 14.8 |
| TCN 3/8 D NPT | 16.0 | 11.5 |
| NPT 3/8 | 16.3 | 11.5 |
| NPT 1/2 | 20.8 | 20.0 |
| NPT 3/4 | 26.0 | 19.5 |
| NPT 1-1/2 | 47.0 | 26.5 |
IT:FILETTO METRICAEN:METRIC THREADFR:Filetage métriqueDE:Metrisches GewindeES:Rosca métricaCZ:Metrický závitPL:Gwint metryczny
| Codice | A | B |
|---|---|---|
| TCN 05 | 5.0 | 13.8 |
| TCN 07 | 6.8 | 10.0 |
| TCN 17 | 17.2 | 13.7 |
| TCN 18L | 17.8 | 23.2 |
| TCN 22 | 21.5 | 17.7 |
| TCN 38 | 37.5 | 21.0 |
| TCN 44.5 | 44.5 | 14.2 |
| TCN 73 | 73.5 | 30.0 |
IT:FILETTO UNFEN:UNF THREADFR:Filet UnfDE:Unf-GewindeES:Rosca UnfCZ:Závit UnfPL:Gwint Unf
| Codice | A | B |
|---|---|---|
| TCN 7/16 | 11.0 | 15.3 |
| TCN 1/2 | 12.3 | 14.8 |
| TCN 9/16 | 14.0 | 15.0 |
| TCN 11/16 | 17.0 | 13.6 |
| TCN 3/4 | 18.5 | 19.0 |
| TCN 13/16 | 20.3 | 16.6 |
| TCN 7/8 | 21.8 | 17.5 |
| TCN 1 | 25.0 | 17.5 |
| TCN 1-1/16 | 26.5 | 19.5 |
| TCN 1-3/16 | 30.0 | 19.7 |
| TCN 1-5/16 | 32.5 | 19.5 |
| TCN 1-7/16 | 36.0 | 19.5 |
| TCN 1-5/8 | 41.0 | 23.0 |
| TCN 1-5/8L | 41.0 | 35.5 |
| TCN 1-11/16 | 42.0 | 20.0 |
| TCN 1-7/8 | 47.0 | 26.5 |
| TCN 2 | 50.5 | 27.0 |
