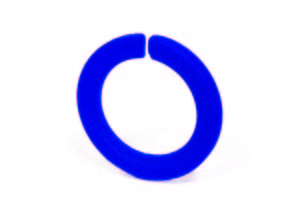

ECO Closed thickness 4.5

TECHNICAL DATA
DOWNLOAD

IT:FILETTO REF.EN:REF. THREADFR:Filet Ref.DE:Gewinde Ref.ES:Rosca Ref.CZ:Závit Ref.PL:Gwint Ref.

Codice A B C D E
AAMO081 ECO 23.9 31.5 4.5 0.9 1.0
AAMO075 ECO 24.0 30.0 4.5 0.9 1.0
AAMO082 ECO 29.9 38.0 4.5 0.9 1.0
AAMO076 ECO 30.0 36.0 4.5 0.9 1.0
AAMO042MAP ECO 35.2 45.0 4.5 0.9 1.0
AAMO077 ECO 36.5 43.0 4.5 0.9 1.0
AAMO042MAP ECO 41.8 51.6 4.5 0.9 1.0
AAMO078 ECO 43.0 50.0 4.5 0.9 1.0

Download the PDF of this product and
discover all the features
