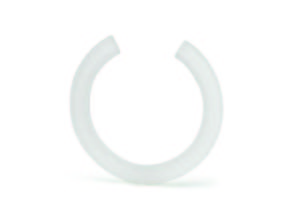

ECO Nut stopper rings for automatic assembly
TECHNICAL DATA
DOWNLOAD
IT:FILETTO REF.EN:REF. THREADFR:Filet Ref.DE:Gewinde Ref.ES:Rosca Ref.CZ:Závit Ref.PL:Gwint Ref.
| Codice | A | B | C | D | E |
|---|---|---|---|---|---|
| AAMO130AP ECO | 7.8 | 14.5 | 2.0 | 1.0 | 0.7 |
| AAMO108AP ECO | 8.3 | 12.0 | 2.0 | 1.0 | 0.7 |
| AAMO109AP ECO | 10.6 | 15.0 | 2.0 | 1.0 | 0.7 |
| AAMO110AP ECO | 11.6 | 16.0 | 2.0 | 1.0 | 0.7 |
| AAMO111AP ECO | 12.5 | 17.0 | 2.0 | 1.0 | 0.7 |
| AAMO112AP ECO | 13.3 | 19.0 | 2.0 | 1.0 | 0.7 |
| AAMO113AP ECO | 13.9 | 21.0 | 2.0 | 1.0 | 0.7 |
| AAMO134AP ECO | 17.0 | 23.0 | 2.0 | 1.0 | 0.7 |
| AAMO114AP ECO | 17.4 | 23.0 | 2.0 | 1.0 | 0.7 |
| AAMO115AP ECO | 18.2 | 25.0 | 2.0 | 1.0 | 0.7 |
| AAMO116AP ECO | 21.0 | 27.0 | 2.0 | 1.0 | 0.7 |
| AAMO117AP ECO | 24.0 | 30.0 | 2.0 | 1.0 | 0.7 |
| AAMO118AP ECO | 24.9 | 32.0 | 2.0 | 1.0 | 0.7 |
| AAMO119AP ECO | 30.0 | 37.0 | 2.0 | 1.0 | 0.7 |
| AAMO120AP ECO | 36.9 | 45.0 | 2.0 | 1.0 | 0.7 |
| AAMO121AP ECO | 38.0 | 45.0 | 2.0 | 1.0 | 0.7 |
| AAMO122AP ECO | 43.3 | 50.0 | 2.0 | 1.0 | 0.7 |
