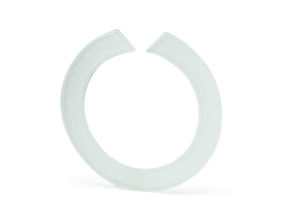

ECO Open thickness 1

TECHNICAL DATA
DOWNLOAD

IT:FILETTO REF.EN:REF. THREADFR:Filet Ref.DE:Gewinde Ref.ES:Rosca Ref.CZ:Závit Ref.PL:Gwint Ref.

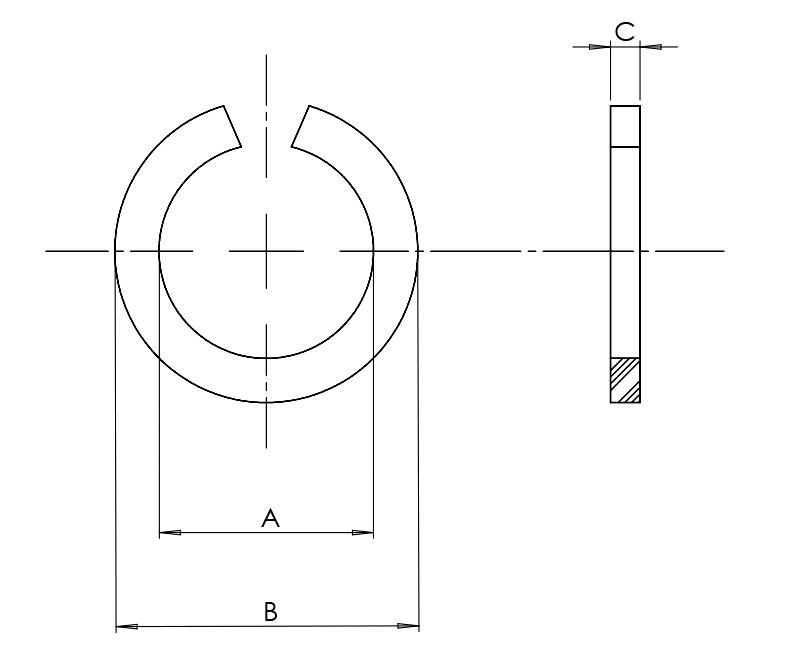

Codice A B C
AAMO001AP ECO 6.5 12.0 1.0
AAMO069AP ECO 7.9 14.0 1.0
AAMO002AP ECO 8.0 17.5 1.0
AAMO014AP ECO 8.0 14.0 1.0
AAMO050AP ECO 9.4 14.0 1.0
AAMO003AP ECO 9.5 17.5 1.0
AAMO057AP ECO 10.0 16.7 1.0
AAMO004AP ECO 11.0 18.0 1.0
AAMO051AP ECO 11.3 16.7 1.0
AAMO058AP ECO 12.4 16.7 1.0
AAMO019AP ECO 12.5 18.0 1.0
AAMO091AP ECO 14.3 23.8 1.0
AAMO052AP ECO 14.5 20.5 1.0
AAMO020AP ECO 16.0 24.0 1.0
AAMO092AP ECO 17.0 27.0 1.0
AAMO053AP ECO 17.5 24.5 1.0
AAMO093AP ECO 20.0 33.0 1.0
AAMO054AP ECO 20.4 28.0 1.0
AAMO094AP ECO 26.0 39.5 1.0
AAMO055AP ECO 26.3 34.9 1.0
AAMO056AP ECO 33.5 42.0 1.0
AAMO059AP ECO 39.5 47.0 1.0

Download the PDF of this product and
discover all the features
