Cappuccio per orientabile ECO

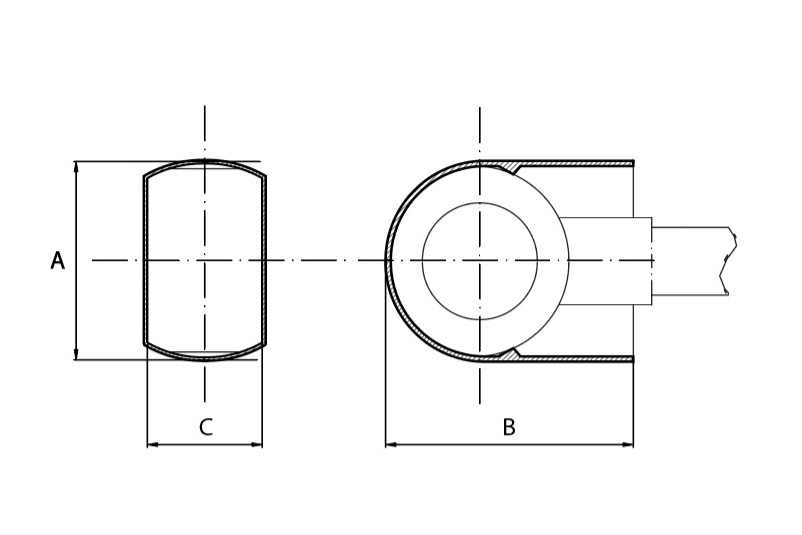

DATI TECNICI
DOWNLOAD
IT:FILETTO GASEN:GAS THREADFR:Filetage pour gazDE:Gas-GewindeES:Rosca GasCZ:Plynové vláknoPL:Gwint gazowy
| Codice | A | B | C |
|---|---|---|---|
| CAP 3/4 ECO | 46.0 | 50.0 | 30.0 |
| CAP 1 ECO | 56.0 | 60.5 | 37.0 |
IT:FILETTO REF.EN:REF. THREADFR:Filet Ref.DE:Gewinde Ref.ES:Rosca Ref.CZ:Závit Ref.PL:Gwint Ref.
| Codice | A | B | C |
|---|---|---|---|
| CAP 08 ECO | 15.8 | 16.0 | 8.5 |
| CAP 10 ECO | 19.0 | 19.5 | 10.0 |
| CAP 12 ECO | 22.0 | 24.5 | 12.5 |
| CAP 13 ECO | 26.0 | 28.0 | 13.5 |
| CAP 14 ECO | 26.0 | 28.0 | 14.5 |
| CAP 15 ECO | 30.0 | 32.0 | 15.5 |
| CAP 16 ECO | 30.0 | 32.0 | 16.5 |
| CAP 18 ECO | 34.5 | 36.5 | 21.0 |
| CAP 20 ECO | 37.5 | 38.5 | 22.5 |
| CAP 22 ECO | 41.5 | 43.0 | 25.5 |
| CAP 24 ECO | 44.2 | 45.5 | 26.5 |
| CAP 26 ECO | 46.0 | 50.0 | 30.0 |
| CAP 27 ECO | 48.0 | 48.0 | 25.5 |
| CAP 30 ECO | 54.0 | 60.5 | 36.0 |
