Tappi femmina a cappuccio ECO
DATI TECNICI
DOWNLOAD
IT:FILETTO GASEN:GAS THREADFR:Filetage pour gazDE:Gas-GewindeES:Rosca GasCZ:Plynové vláknoPL:Gwint gazowy

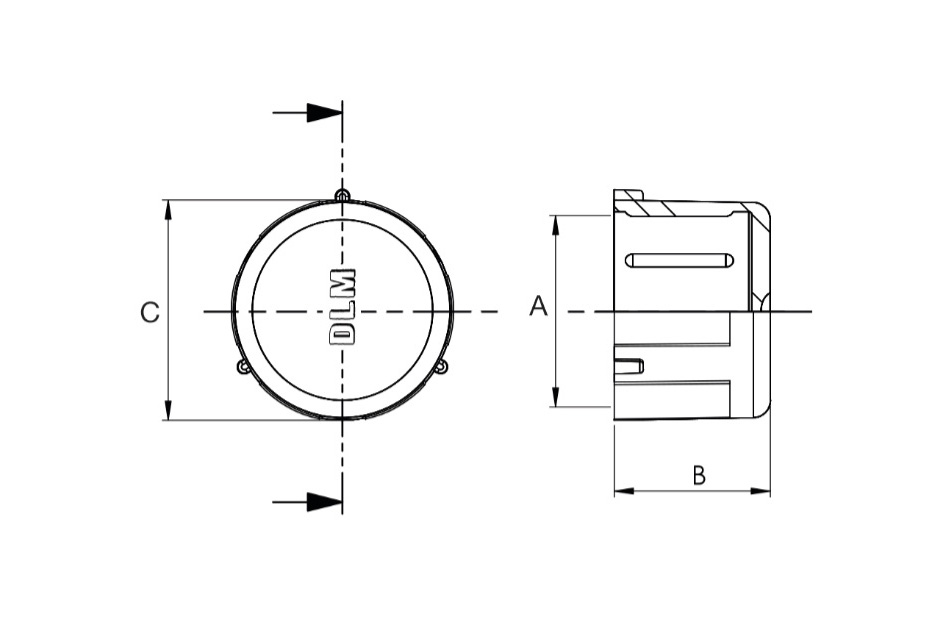

| Codice | A | B |
|---|---|---|
| CPG 1/8 ECO | 13.5 | 14.5 |
| CPG 1/4 ECO | 14.3 | 14.4 |
| CPG 3/8 ECO | 19.0 | 13.3 |
| CPG 1/2 ECO | 22.5 | 15.5 |
| CPG 3/4 ECO | 28.3 | 22.3 |
| CPG 1 ECO | 39.0 | 24.0 |
| CPG 1-1/4 ECO | 45.6 | 31.0 |
| CPG 1-1/2 ECO | 51.5 | 28.0 |
| CPG 2 ECO | 64.5 | 28.0 |
IT:FILETTO METRICAEN:METRIC THREADFR:Filetage métriqueDE:Metrisches GewindeES:Rosca métricaCZ:Metrický závitPL:Gwint metryczny
| Codice | A | B |
|---|---|---|
| CPM 10 ECO | 13.5 | 14.5 |
| CPM 12 ECO | 13.5 | 14.5 |
| CPM 14 ECO | 16.0 | 14.0 |
| CPM 16 ECO | 18.5 | 13.5 |
| CPM 18 ECO | 20.0 | 13.0 |
| CPM 20 ECO | 22.5 | 15.5 |
| CPM 22 ECO | 25.5 | 18.0 |
| CPM 24 ECO | 26.0 | 24.0 |
| CPM 26 ECO | 28.3 | 22.3 |
| CPM 30 ECO | 32.0 | 24.0 |
| CPM 36 ECO | 40.4 | 24.0 |
| CPM 42 ECO | 45.6 | 31.0 |
| CPM 45 ECO | 49.0 | 24.5 |
| CPM 52 ECO | 57.0 | 26.5 |
IT:FILETTO UNFEN:UNF THREADFR:Filet UnfDE:Unf-GewindeES:Rosca UnfCZ:Závit UnfPL:Gwint Unf
| Codice | A | B |
|---|---|---|
| CPU 3/8 ECO | 13.5 | 14.5 |
| CPU 7/16 ECO | 13.5 | 14.5 |
| CPU 1/2 ECO | 14.5 | 14.4 |
| CPU 9/16 ECO | 16.5 | 13.9 |
| CPU 11/16 ECO | 19.0 | 14.5 |
| CPU 3/4 ECO | 22.0 | 15.0 |
| CPU 13/16 ECO | 22.5 | 15.5 |
| CPU 7/8 ECO | 25.5 | 18.0 |
| CPU 1 ECO | 28.3 | 18.5 |
| CPU 1-1/16 ECO | 28.3 | 22.3 |
| CPU 1-3/16 ECO | 32.5 | 24.0 |
| CPU 1-5/16 ECO | 39.0 | 24.0 |
| CPU 1-7/16 ECO | 40.4 | 24.0 |
| CPU 1-5/8 ECO | 44.0 | 31.0 |
| CPU 1-11/16 ECO | 45.0 | 31.0 |
| CPU 1-7/8 ECO | 51.5 | 28.0 |
| CPU 2 ECO | 55.0 | 33.0 |
