Tappi maschio filettati interi ECO

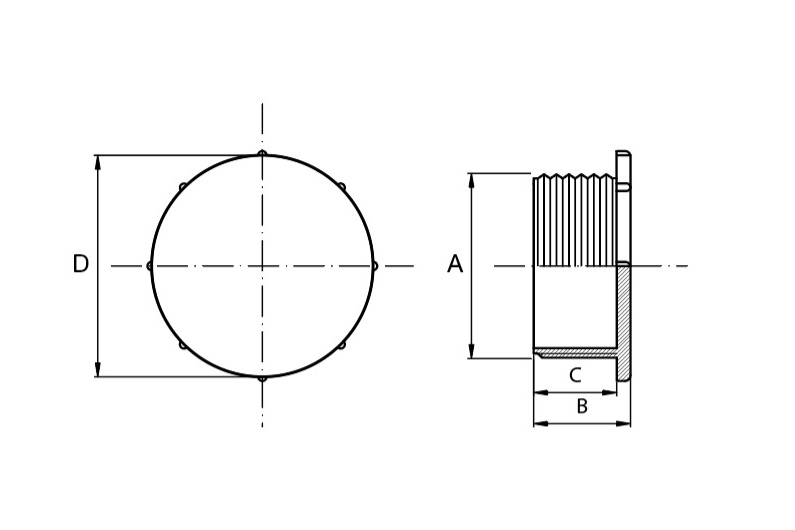

DATI TECNICI
DOWNLOAD
IT:FILETTO GASEN:GAS THREADFR:Filetage pour gazDE:Gas-GewindeES:Rosca GasCZ:Plynové vláknoPL:Gwint gazowy
| Codice | A | B | C |
|---|---|---|---|
| TMG 1/4 I ECO | 20.0 | 10.0 | 6.5 |
| TMG 3/8 I ECO | 20.5 | 10.5 | 7.5 |
| TMG 1/2 I ECO | 25.5 | 13.0 | 9.0 |
| TMG 3/4 I ECO | 30.0 | 14.5 | 11.0 |
| TMG 1 I ECO | 37.5 | 15.5 | 10.0 |
| TMG 1-1/4 I ECO | 46.5 | 16.0 | 10.5 |
| TMG 1-1/2 I ECO | 54.0 | 16.5 | 10.5 |
| TMG 2 I ECO | 71.0 | 17.0 | 11.0 |
IT:FILETTO METRICAEN:METRIC THREADFR:Filetage métriqueDE:Metrisches GewindeES:Rosca métricaCZ:Metrický závitPL:Gwint metryczny
| Codice | A | B | C |
|---|---|---|---|
| TMM 12X1.5 I ECO | 20.0 | 10.0 | 6.5 |
| TMM 14X1.5 I ECO | 20.5 | 10.0 | 7.2 |
| TMM 16X1.5 I ECO | 21.0 | 11.5 | 9.0 |
| TMM 18X1.5 I ECO | 21.5 | 14.0 | 9.0 |
| TMM 20X1.5 I ECO | 25.0 | 12.0 | 8.5 |
| TMM 22X1.5 I ECO | 25.5 | 15.0 | 8.5 |
| TMM 24X1.5 I ECO | 30.0 | 14.0 | 9.5 |
| TMM 27X1.5 I ECO | 35.0 | 15.5 | 12.0 |
| TMM 30X1.5 I ECO | 36.0 | 14.0 | 8.0 |
| TMM 30X02 I ECO | 36.0 | 15.5 | 12.0 |
| TMM 36X02 I ECO | 40.0 | 17.0 | 11.5 |
| TMM 42X02 I ECO | 44.5 | 16.0 | 10.5 |
| TMM 52X02 I ECO | 60.5 | 16.5 | 11.0 |
IT:FILETTO ORFSEN:ORFS THREADFR:Filet OrfsDE:Gewinde OrfsES:Rosca OrfsCZ:Závit OrfsPL:Gwint Orfs
| Codice | A | B | C |
|---|---|---|---|
| TMO 9/16 ECO | 20.5 | 10.0 | 7.2 |
| TMO 11/16 ECO | 20.5 | 10.5 | 7.2 |
| TMO 13/16 ECO | 25.5 | 12.8 | 9.0 |
| TMO 1 ECO | 30.5 | 14.0 | 11.0 |
| TMO 1-3/16 ECO | 36.0 | 16.5 | 12.0 |
| TMO 1-7/16 ECO | 40.0 | 17.0 | 11.5 |
| TMO 1-11/16 ECO | 46.5 | 16.0 | 10.5 |
| TMO 2 ECO | 62.5 | 15.5 | 9.5 |
IT:FILETTO UNFEN:UNF THREADFR:Filet UnfDE:Unf-GewindeES:Rosca UnfCZ:Závit UnfPL:Gwint Unf
| Codice | A | B | C |
|---|---|---|---|
| TMU 7/16 I ECO | 16.5 | 12.0 | 7.0 |
| TMU 1/2 I ECO | 20.0 | 10.0 | 6.5 |
| TMU 9/16 I ECO | 20.4 | 10.0 | 7.2 |
| TMU 11/16 I ECO | 20.5 | 10.5 | 7.2 |
| TMU 3/4 I ECO | 21.0 | 15.0 | 10.0 |
| TMU 13/16 I ECO | 25.5 | 12.8 | 9.0 |
| TMU 7/8 I ECO | 26.0 | 12.0 | 8.5 |
| TMU 1 I ECO | 30.5 | 14.0 | 11.0 |
| TMU 1-1/16 I ECO | 30.5 | 13.5 | 9.5 |
| TMU 1-3/16 I ECO | 36.0 | 16.5 | 12.0 |
| TMU 1-5/16 I ECO | 37.5 | 15.5 | 10.0 |
| TMU 1-7/16 I ECO | 40.5 | 15.5 | 10.0 |
| TMU 1-11/16 I ECO | 46.5 | 16.0 | 10.5 |
| TMU 1-5/8 I ECO | 47.0 | 17.5 | 10.5 |
| TMU 1-7/8 I ECO | 54.0 | 16.5 | 10.5 |
| TMU 2 I ECO | 62.5 | 15.5 | 9.5 |
